How do You install the Charging Station? (for V3)

1.Choose a suitable location

·       Place the charging station on a flat, solid surface with good Wi-Fi coverage.

·       Remove tall grass (up to 8 cm), leaves, and other obstacles around the station.

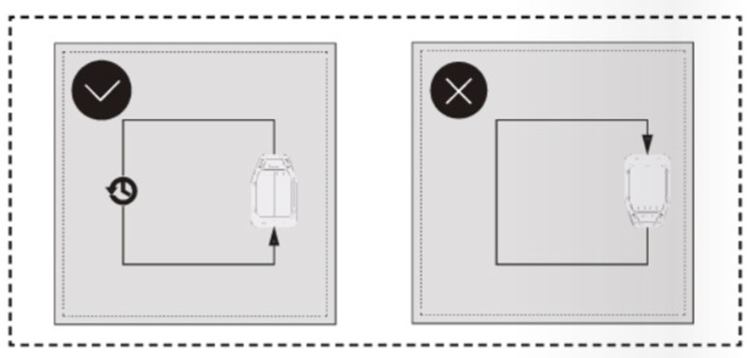

·       Align the station so that it is positioned counterclockwise at the edge of the lawn.

·       Ensure that the QR code on the station is clearly visible.

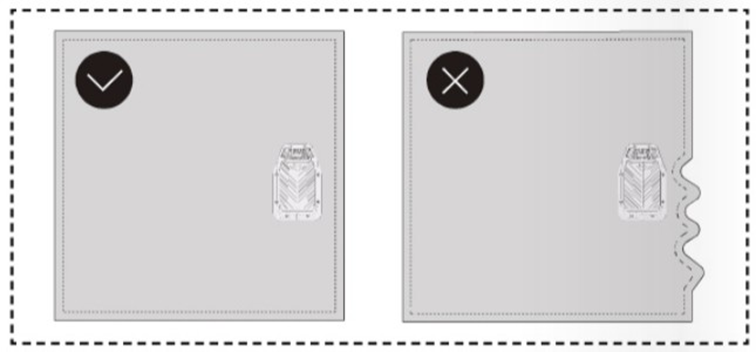

·      Ensure that the lawn boundary is straight.

·   The charging station must be located within 10 m of a power source.

·   Avoid strong magnetic sources near the charging station.

2. Consider the placement of the charging station

·       There are three options for placing the charging station

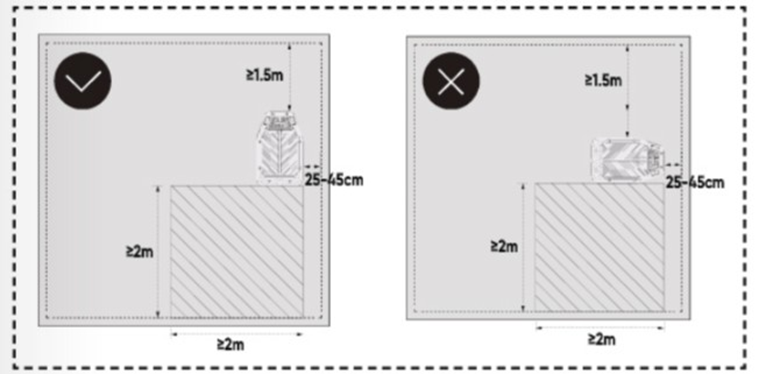

Within the lawn area:

Place the station within 25 to 45 cm of the lawn boundary.

There should be no obstacles within a distance of at least 2 m in front of the charging station.

The distance from the rear of the station to the boundary should be at least 1.5 m.

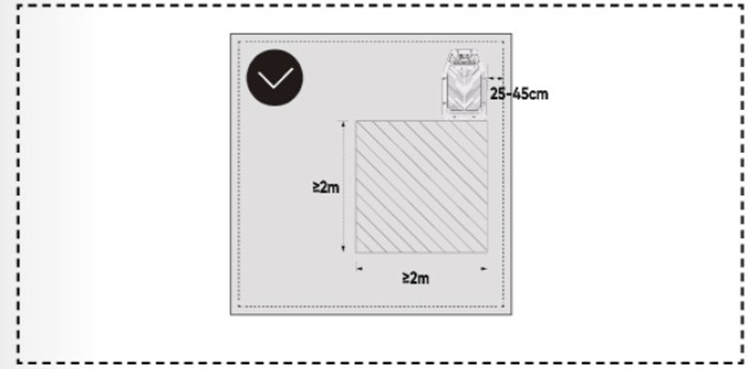

In a corner of the lawn:

The charging station should be located between 25 and 45 cm from the edge of the lawn.

The distance from the front of the charging station to the boundary should be no less than 2 m.

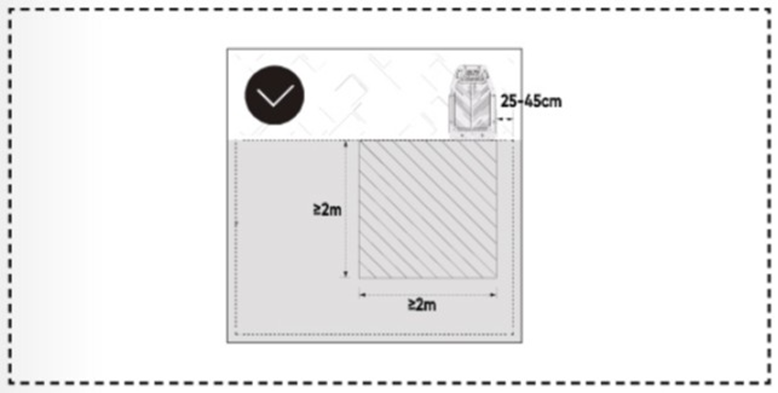

Along the outer edge of the lawn:

The charging station should be located between 25 and 45 cm from the edge of the lawn.

The distance from the front of the charging station to the boundary should be no less than 2 m.

3. Connect the charging station

·       Secure the station to the floor using the screws provided.

·       Connect the charging cable and plug it into the power supply.

Tips

·       After installation, check that the charging station is stable and freely accessible.

·       Make sure that the robotic lawn mower can enter and exit without any problems.

·       If necessary: Move the station slightly until navigation works reliably.
